Slaughterhouse Equipment
Slaughterhouse Technology
TEKNOTES Manufactures all the equipment needed for a slaughterhouse from paddock to slaughtering box to slaughtering lines equipment and processing units…
-
Rotationary Killing Box ,Classic Cutting Cabin, Bleeding Line, Bleeding Conveyor,Return Hook Line and Helix, Bleeding Hooks, Elevator, Hoist, Butcher Platforms, Bleeding Pan, Transfer Units,
-

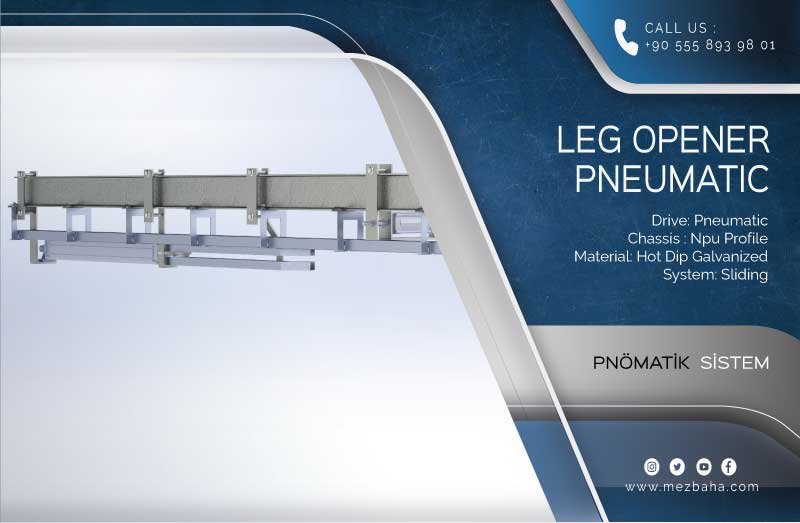

Processing Line, Processing Conveyor, Platforms, Hoist , Elevator, Skin Dehider Machine, Carcass Splitting, Saw Tools, Processing Hooks, Shower Cabin, Leg Spreader,
-
Cleaning Pan, Chutes, Offal Trolley, Offal Hanger, Liver Conveyor, Tripe Cleaning Machine, Bowel Cleaning Machine, Omasum Cleaning, Tripe Waste Pump,
-
Corridor, Cold Room Twinrail Line, Pre Cooling Conveyor, Hooks,Overhead Scale,
-
Carcass Loaiding Arm,
Cattle Killing Halal Box
Slaughterhouse Equipment Ritual Cattle Killing Box
Fully rotationary slaughter box Hydraulic or Pneumatic System Engine Power : 4 kW / 5.2 hp Weight : 3000 kg Length : 2000 mm Width : 2600 mm Height : 2500 mm Pressure : 8 Bar
-
![Halal Box]()
Fully Automatic
It is fully automatic and appropriate for halal slaughtering.
-
![Slaughterhouse Equipment Ritual Cattle Killing Box]()
Pneumatic&Hydraulic System
Pneumatic or Hydraulic pistons, the animal is fixed on both sides and at the top.
-
![Halal Slaughtering]()
Cattle Killing Halal Box
Suitable for halal slaughtering.
CLASSIC SLAUGHTER BOX
Galvanized Body or Stainless Steel
304 Quality Stainless Steel
Classic Ritual Trap
Cattle Stunning Box
Suitable for every size of animal Movable floor Appropriate for halal cutting Works trouble-free in wet conditions because of pneumatic system Mounted to floor, collapsible with the help of pneumatic cylinders on 3 side Front side is barred only when the cattle moved inside Sachet is made of NPU 120 profile System is full stainless steel
-
![Halal Box]()
Coating
System is full stainless steel 304 quality or hot-dip galvanized
-
![]()
Pneumatic System
Mounted to floor, collapsible with the help of pneumatic cylinders
-
![Halal Slaughtering]()
Cattle Cutting Cabin
Suitable for halal slaughtering.
Cattle Bleeding & Transfer Hoist
Engine Power : 7,5 kW GearMotor Sachet will be NPU profiled and fold points will not prevent the movement of the chain. Providing bleeding and transfer elevator for using in the slaughter hall of slaughter houses.Cattle Skin Dehider Machine
Pneumatic,Hydraulic Systems,Mechanic System. Capacity to skin 30-40 pieces of cowhide per hour. The chassis of the skinning machine is made of AISI 304 quality stainless steel.The drive will be provided by hydro-motor or electric motor, and the up and downmovement will be provided by hydraulic or pneumatic pistons.It has a stainless chain and stainless drum system.
Cattle Skinning Machine
Hydraulic Skin Dehider Machine
-
2.2 KW 380 Volt engine -25. Liters tank 200 Bar / working pressure Hydraulic unit Piston Diameter : 75 mm piston length: 1500 mm piston power: 2 TONS
Composite step
Mechanic Skin Dehider Machine
SLAUGHTERHOUSE MAIN EQUIPMENT TWINRAIL AND MONORAIL LINES
304 quality stainless profiles,pipes These lines are used throughout the slaughterhouse Cattle Bleeding Line, Cattle Processing Line, Corridor, Cold Room Storage Rooms, Sheep Bleeding Line, Sheep Processing Line…
Slaughterhouse Equipment Monorail Twinrail
Corridor, Cutting Saloon, Cold Room Twinrail Line
Processing Twinrail Line
Monorail Line

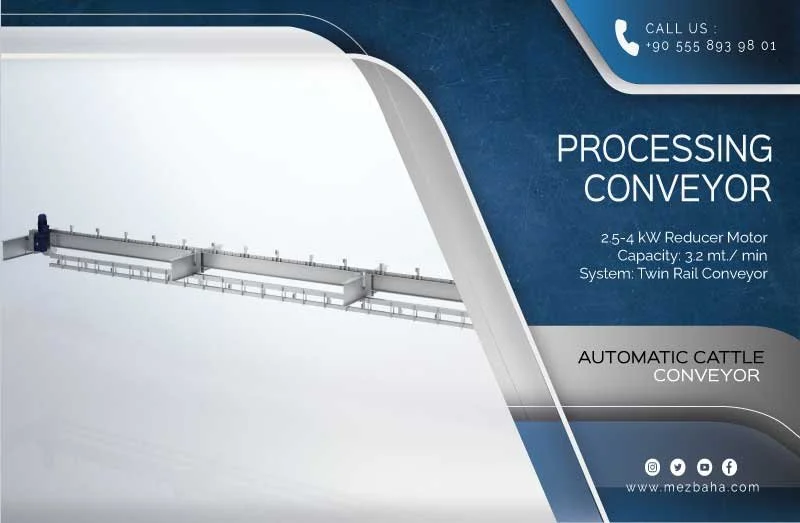

CATTLE PROCESSING CONVEYOR
Made of stainless steel Chain according to the design Transmission: gearmotor direct to the power shaft depending on the design The tensioner assembly is equipped with a double safety system for stopping in case of hooking, and thus avoiding breakage
Butcher Working Platforms
Hydraulic & Pneumatic & Fixed Platform Type
According to operating conditions pneumatic veterinary control platform will be designed in size of 800*1000 mm and will be covered with 3 mm thick composite. At the edges of the platform there will be a parapet with a pipe of diameter of Ø 32 " Platform will work as an access platform with pneumatic pistons and will have a carrying capacity of at least 200 kg between 500 mm and 1700 mm height. Platform will have a control panel and bottom-up limit switches. Complete stainless steel. Red non-slip composite floor.
SHEEP SLAUGHTER SOLUTION
Sheep, Lamb, Goat Cutting Facility.
TEKNOTES CUSTOM DESIGNS, MANUFACTURES, INSTALLS SHEEP SLAUGHTERING SYSTEMS
TEKNOTES , manufactures all the sheep equipment needed for a slaughterhouse from paddock to slaughtering box, to slaughtering lines equipment and processing units,by conveying the 13 years of experience in manufacturing systems to your project.

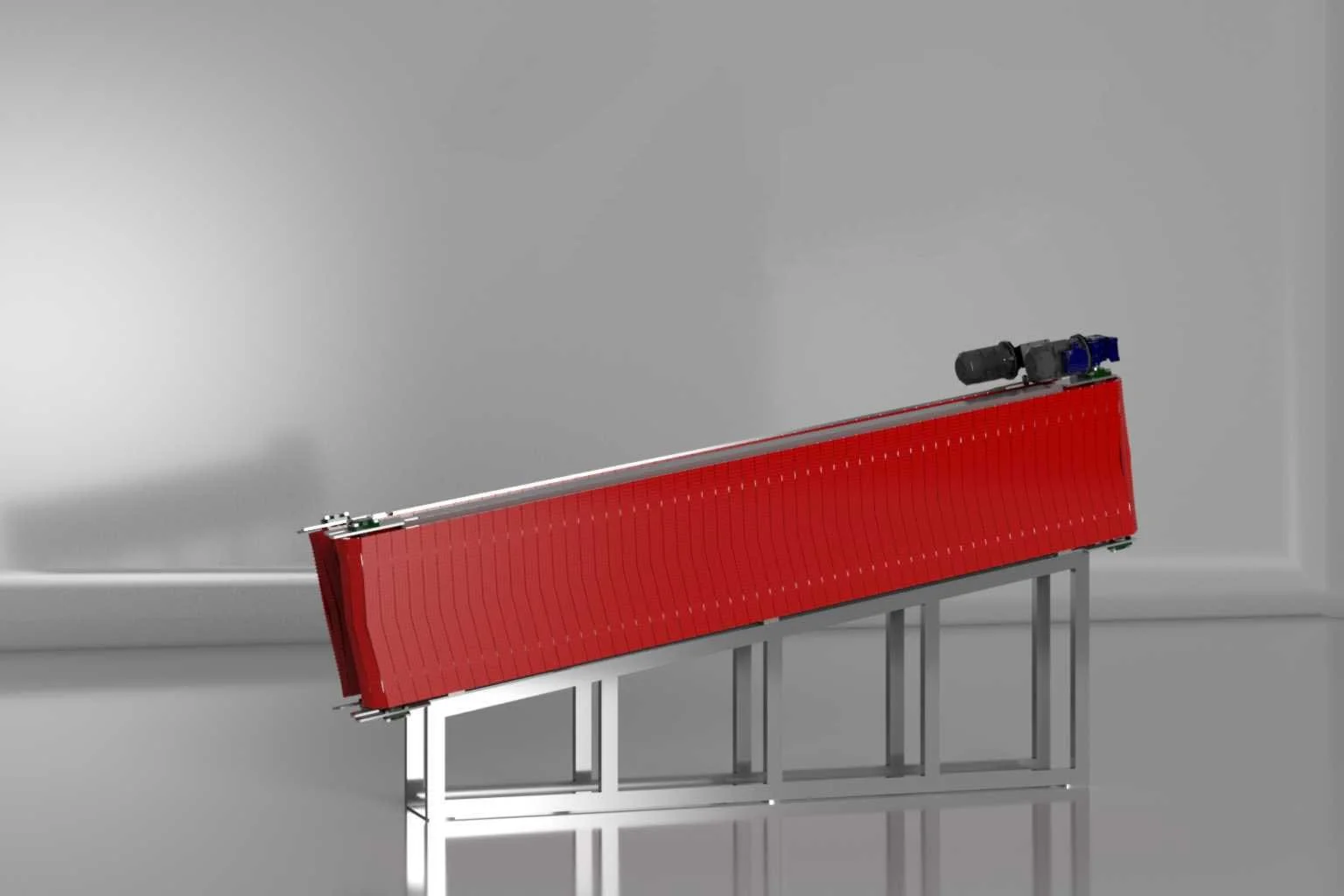

SHEEP FIXING MACHINE
Modular Belt System, 1.1 kW engine motors 2 pcs.Guard railing on both sides of the tape. System to prevent belt tensioning and belt slippage on the conveyor.
It is made of stainless steel, with adjustable width, it can be used for every kind of sheep. After placing the sheep in the platform, it is elevated to the highest level with the movable conveyor.Sheep Slaughter Equipment
SHEEP CONVEYOR HORIZONTAL-VERTICAL
Conveyor System
〰️
Conveyor System 〰️
Made of stainless steel Chain according to the design Transmission: gearmotor direct to the power shaft depending on the design The tensioner assembly is equipped with a double safety system for stopping in case of hooking, and thus avoiding breakage
Slaughtered sheep is transferred to the bleeding conveyor by sheep lifting elevator.
SHEEP BLEEDING ELEVATOR
These fixed working platforms are designed for butchers to provide comfortable and efficient working environment.Composite step.
SHEEP PLATFORM
SHEEP SKIN DEHIDER
〰️
SHEEP SKIN DEHIDER 〰️
